Description:

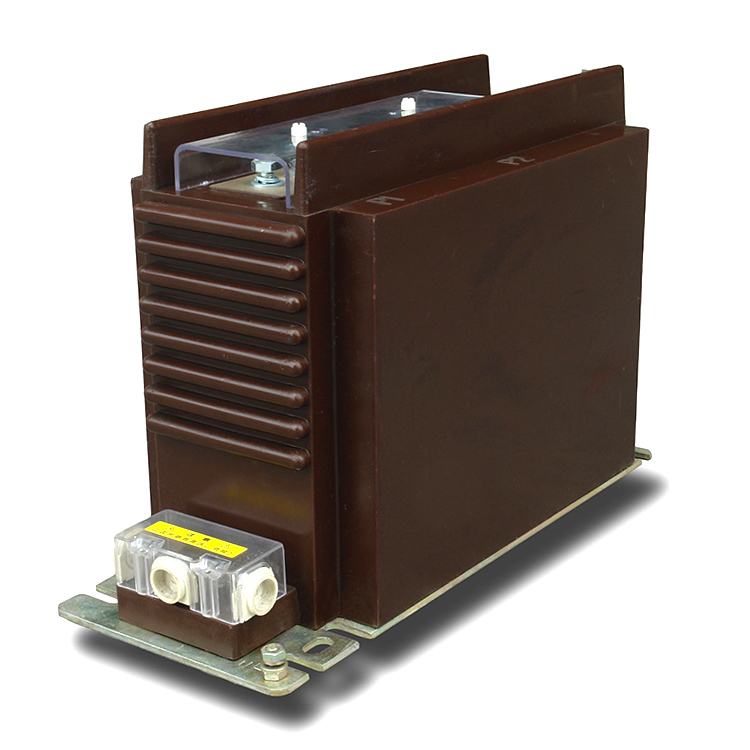

Type LZZBJ9-24 current transformer is  used for metering and protective relay purposes for installation in indoor up to 24 KV rated voltage frequency 50 Hz, the current transformer is used for metering and protective relaying action in indoor and especially is suited for using in the narrow case (fixed) ring-net switch gear.

Suitable Operating Conditioning

1. Altiude is no more than 1000m.

2. The maximum change of surrouding temperature is no more than -5~+55°C.

3. Universal product is only used in the area with less than 85% relative humidity.

4. No gas, steam, chemical deposition, pollution, explosive gas or etching gas in installation environment.

5. No chattering of bumping.

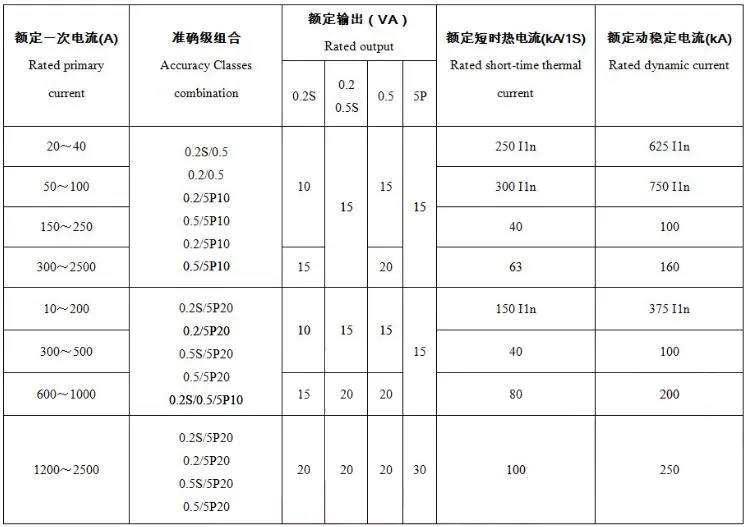

Technical Data:

Note: If user'data beyond the above mentioned scopes, you can negotiate with us.

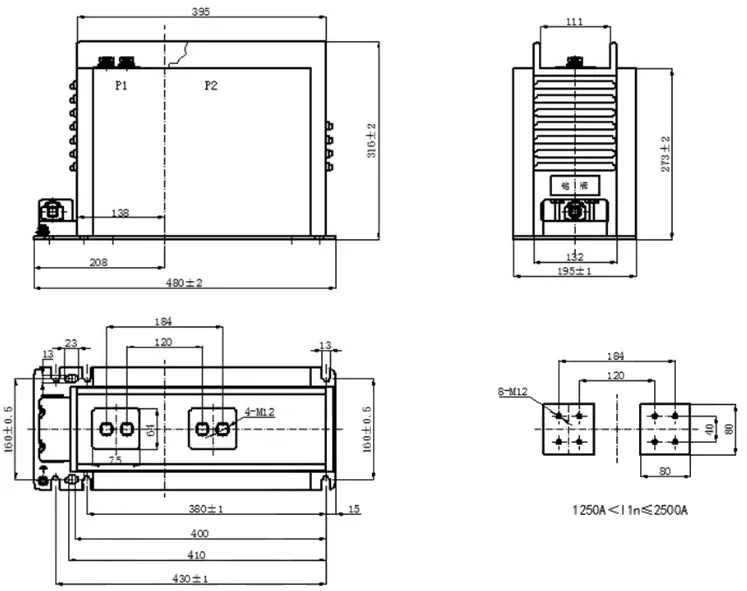

Overall Dimension
