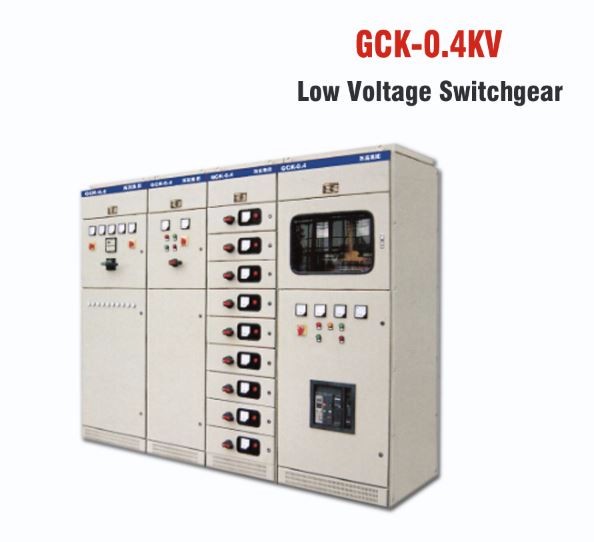

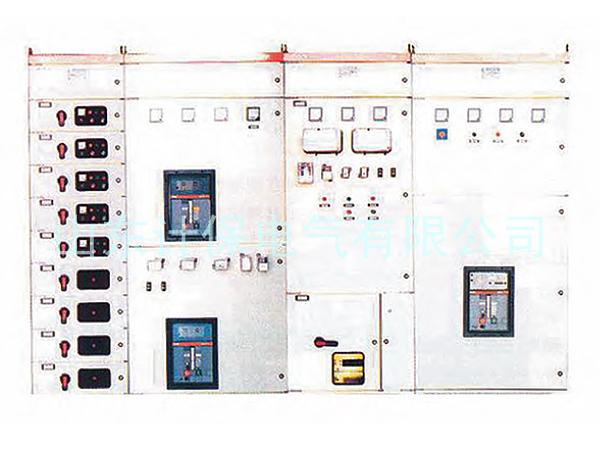

GCK 400v electrical lv distribution panel

Interview share

low price gck 400v electrical lv distribution panel

low price gck 400v electrical lv distribution panel



1. Environmental Conditions

  • Suitable Altitude: 1000m ~ 4000m
  • Suitable Temperature: -40℃ ~ +45℃
  • Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
  • Gradation of Earthquake Damage: ≤ Level 8

2. Technical Data



 No. Item  UnitData
 1 Rated voltageV400,690
2Rated insulation voltageV660,1000
3Rated currentA400~6300

4

Rated current of drawer accessoriesA250,400,630
5Rated short-circuit currentKA20~120
6Insulation: Power frequency withstand voltageVMain circuit:2500; Auxiliary circuit 2000
7Protection class
IP4X
8Operating mechanism
Manual mechanism; Electric mechanism
9Operational power supplyVDC:110,220; AC:110,220
10Overall dimension(Width*Depth*Height)mm600(800,1000)x800(1000)x2200
11  Weight KG300~1000
